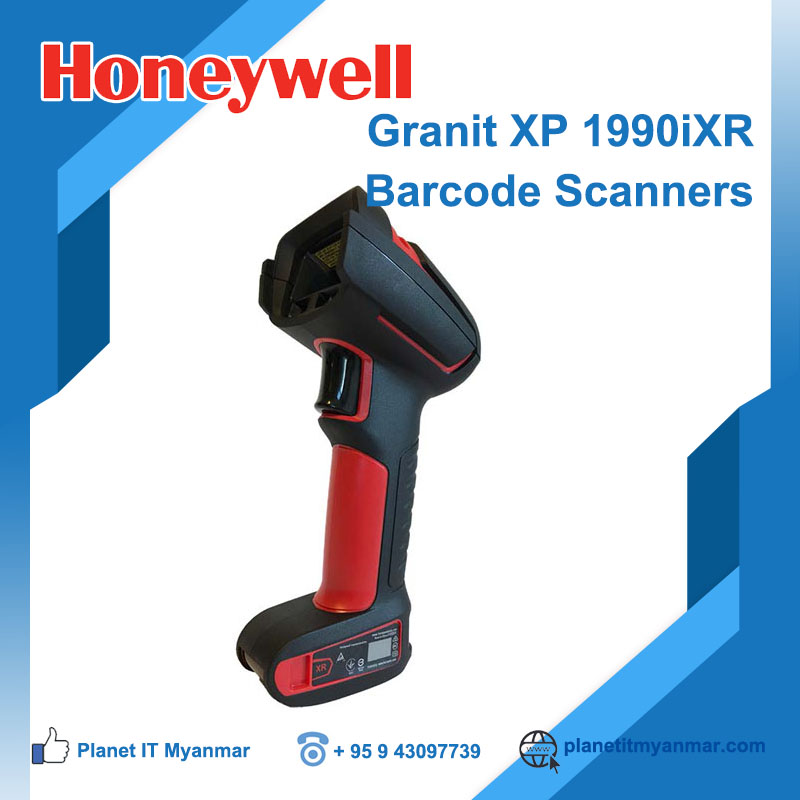

Honeywell Granit XP 1990iXR Barcode Scanners

The ultra-rugged barcode reader redefines the Honeywell Granit XP 1990iXR for rugged scanning. Optimize the performance of applications that require high-performance, high-speed analysis for standard and enhanced applications



Maximum performance and availability with GranitTM 1990iXR and 1991iXR. Very Rugged Barcode Scanner Robust and high scanning performance, even with damaged or poor quality barcodes. Honeywell Granit XP 1990 iXR Barcode Scanner Wireless scanner up to 100 meters (300 feet) from the base, or security with a USB or serial connection. Granit Barcode Scanner integrates seamlessly with Honeywell car computers. Just plug it in and start scanning.


  • Dimensions (L x W x H)
    192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)
  • User Indicators
    Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable)
  • Host System Interfaces
    USB, Keyboard Wedge, RS-232 TTL
  • Scan Pattern
    Area Imager (1280 x 800 pixel array)
  • Motion Tolerance
    Up to 4500 mm/s (177 in/s)
  • Drop
    2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
    2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
    3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
  • Environmental Sealing
    IP67 and IP65
  • Weight – Corded
    320 g (11.3 oz)
